NA3M5F
neutrik-fr / Produits / NA3M5F

NA3M5F

Download Data Sheet

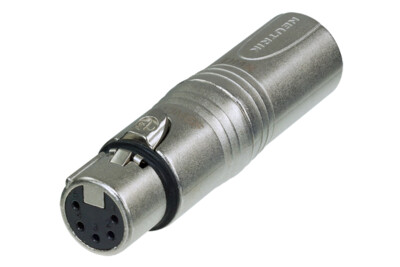

3 pole XLR male - 5 pole XLR female for lighting (DMX) applications

Features & Benefits
  • Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
  • Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
  • Professional look and compact space saving design, based on the XX Series
  • Rugged diecast shell for best reliability

    Downloads
    na3m5f-1
    pdf - 52.57 KB
    na3m5f-2
    dxf - 581.64 KB
    07 Section Accessories and Patch Panels PG EN 202202-V22
    pdf - 7.3 MB

    Technical Information

    Product
    Title NA3M5F
    Connection Type Adapter
    Electrical
    Contact resistance < 3 mΩ
    Dielectric strength 1,5 kVdc
    Insulation resistance > 2 GΩ
    Rated current per contact 7,5 A
    Mechanical
    Insertion force < 20 N
    Withdrawal force < 20 N
    Lifetime > 1000 mating cycles
    Wiresize
    Locking device Latch lock
    Material
    Contact plating 2 µm Ag
    Contacts Brass (CuZn39Pb3)
    Insert Polyamide (PA 6.6 30 % GR)
    Shell Zinc diecast (ZnAl4Cu1)
    Shell plating Nickel
    Environmental
    Temperature range -30 °C to +80 °C
