MAJ-501
*** DISCONTINUED ***

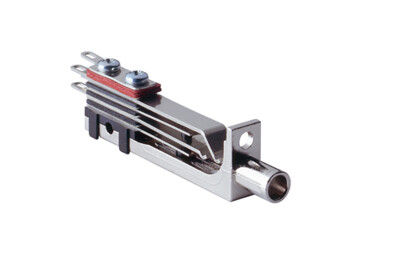

Bantam jack, standard solder lugs
Features & Benefits
- 5-point Bantam jack socket (Tip, Ring, Sleeve, Tip Normal, Ring Normal)
- Rigid nickel plated die-cast frame, featuring considerable frame strength eliminating physical distortion when plug is inserted
- Nickel-silver spring contacts, palladium plated switch contacts
Technical Information
| Product | |
|---|---|
| Title | MAJ-501 |
| Connection Type | Jack |
| Electrical | |
|---|---|
| Contact resistance | < 20 mΩ (spring contact) |
| Contact resistance | < 15 mΩ (switch contact) |
| Dielectric strength | > 0.5 kVdc |
| Frequencyrange | DC to > 50 MHz |
| Insulation resistance | > 1 GΩ @ 500 V dc |
| Mechanical | |
|---|---|
| Insertion force | < 30 N |
| Withdrawal force | > 5 N |
| Lifetime | > 20000 mating cycles |
| Wiresize | |
| Wiring | Solder lug |
| Material | |
|---|---|
| Shell | diecast alloy |
| Contacts | Palladium plated (switch contacts) |
| Environmental | |
|---|---|
| Standard compliance | MIL-J-641/19 |
| Temperature range | -30 °C to +80 °C |
