NORJ50N3-FX view 2 NORJ50N3-FX NORJ50N3-FX with SCRJ-FX

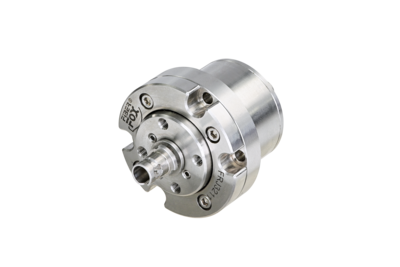

NORJ50N3-FX view 2

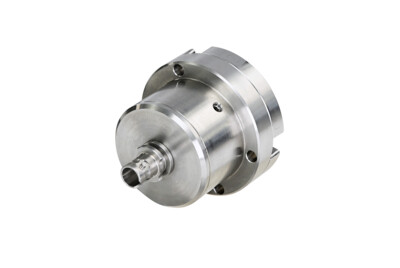

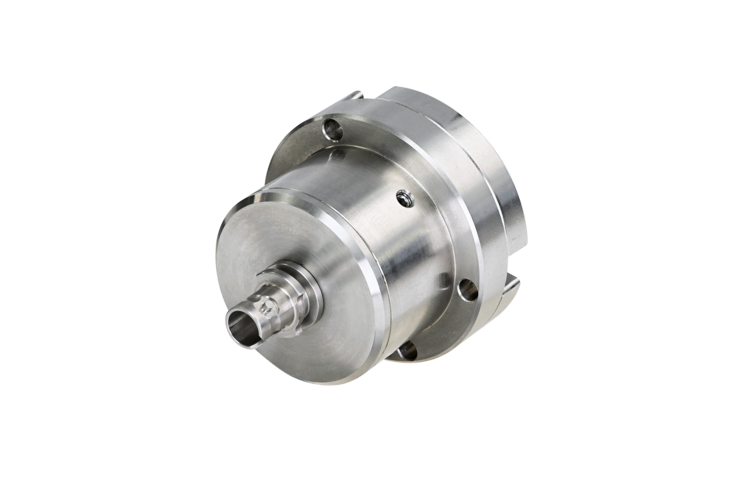

NORJ50N3-FX

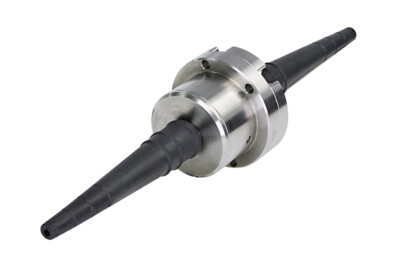

NORJ50N3-FX with SCRJ-FX
1/3
neutrik-fr / Produits / FIBERFOX / FIBERFOX Rotary joint / FIBERFOX Rotary Joint

FIBERFOX Rotary Joint

Download Data Sheet

The FIBERFOX Rotary Joint is an expanded beam multimode solution with fits to standard optical ST connections. It is suitable for a wide range of industrial applications where rotation is a challenge, including robotics, renewable energy (wind turbines) and government (radar stations). The innovative design ensures maximal flexibility and high data rates in rotating systems.

Benefiting from the expanded beam technology and the precision optical alignment the system allows high rotation speed and many revolutions.

Features & Benefits
  • Rotor supported by double deep groove ball bearings
  • IP56 protection - two hermetically dust-tight chambers sealed by shaft seals
  • Extremely long service life with 500 million revolutions
  • Extremely service-friendly
  • Easy integration with common ST patch Cords
  • Reflective coated optics for wavelengths from 850nm to 1300nm
  • Robust and compact design with stainless steel parts
Downloads
NORJ50M3-FX_Drawing_01
pdf - 1.43 MB
NORJ50M3-FX_Drawing_01
octet-stream - 332.57 KB
NEUTRIK - FIBERFOX EXPANDED BEAM CONNECTOR - NF32 V7 202410
pdf - 12.82 MB

Technical Information

Product
Title FIBERFOX Rotary Joint
Mechanical
Rotation speed Max. 5500 rpm
Lifetime 500 Mio. revolutions
Outer diameter Ø 42mm
Stator outer diameter Ø 32mm
Rotor diameter Ø 25.5mm
Total length 60.2mm
Weight 230 g
Material
Shell Stainless steel
High performance grease LGHP 2 (SKF)
Environmental
Protection Class IP56
Temperature range -40° C to +75° C
Optical
Insertion Loss – regular Typ. 1.0dB / Max. 1.5dB
Insertion Loss - @30 rpm ≤ 1.0dB
Optical connector ST
FIBERFOX Rotary Joint
NORJ50N3-FX
Order codeProduct codeDescription
1028479NORJ50M3-FXFIBERFOX Rotary Joint 50um D42x60 OM3 ST/ST

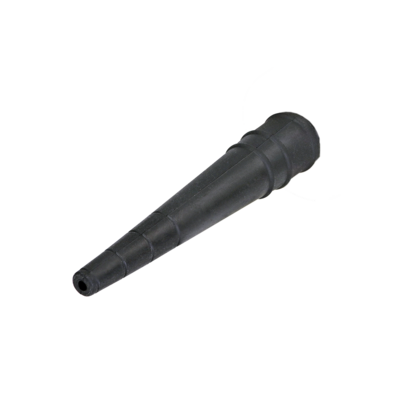

1028485SCRJ-FXSealing cover for ST Rotary Joint Connector D14x73.50
