neutrik_etherFLEX cable offen_persp front_RGB_WEB neutrik_etherFLEX NE8MX-B-TOP_persp front_RGB_WEB neutrik_etherFLEX NE8MX-B-TOP_persp back_RGB_WEB

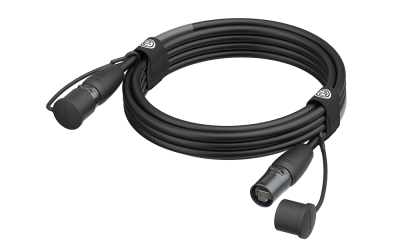

neutrik_etherFLEX cable offen_persp front_RGB_WEB

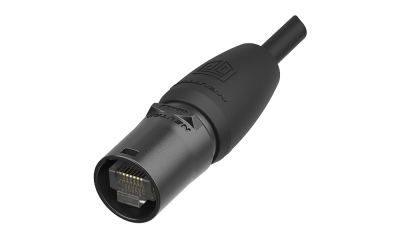

neutrik_etherFLEX NE8MX-B-TOP_persp front_RGB_WEB

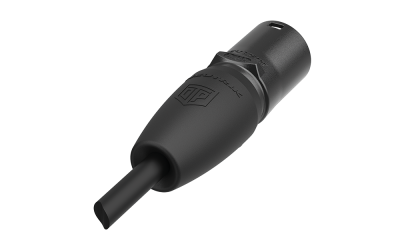

neutrik_etherFLEX NE8MX-B-TOP_persp back_RGB_WEB
1/3
neutrik-fr / Produits / DATA CABLES / premium DATA CABLES / etherFLEX® TOP CAT5e Cable Assemblies

etherFLEX® TOP CAT5e Cable Assemblies

Download Data Sheet

Introducing the etherFLEX® TOP CAT5e ethernet cable assemblies expertly fitted with etherCON® TOP Connectors on each end, completed with Sealing Caps for TRUE OUTDOOR PROTECTION (TOP). Crafted with a highly flexible ethernet cable, etherFLEX® ensures secure connections even in challenging and harsh environments. This cable system is an ideal solution for outdoor and indoor ethernet applications, offering reliability and performance. Available in various lengths to suit your specific needs, our etherFLEX® TOP CAT5e network cable assemblies are the perfect choice for seamless connectivity in any setting to transmit up to 1 Gbit/s. The ratings of the products are only guaranteed by using the corresponding NEUTRIK® etherCON® TOP chassis connectors.

Features & Benefits
  • 1 Gbps transmission performance & CAT5E properties guaranteed up to 30 m cable length
  • 100 W Power over Ethernet according to IEEE 802.3bt Type 4 Class 8
  • Unique RJ45 optimized for mating cycles and Power over Ethernet
  • Highly flexible cable for patching applications
  • Robust & Rugged locking connector shell
  • IP65 & IP67 protection class in mated condition with NEUTRIK® etherCON® TOP airtight
  • IP65 protection class when sealing cap (SCMX-TOP) is closed
  • UV resistant
  • Corrosion resistant
  • Flame resistant cable & connectors for indoor usage
  • Halogen free cable to protect humans and buildings (no toxic or corrosive gases are released)
  • Oil resistant cable to ensure flexibility and elongation properties
  • Tear resistant re-usable velcro straps included
  • Unshrinked transparent shrink tube for customer labeling
Downloads
Drawing NKE5E-E1E1
pdf - 294.55 KB
Drawing NKE5E-E1E1
dxf - 1.4 MB
Product Manual etherFLEX TOP Cables
pdf - 736.03 KB
NEUTRIK premium DATA Cables
pdf - 1.3 MB
DoC REACH NKE5E-E1E1-M
pdf - 284.15 KB
DoC RHOS NKE5E-E1E1-M
pdf - 288.93 KB

Technical Information

Product
Title NKE5E-E1E1-*
Product family etherFLEX®
Connection type etherCON® TOP
Electrical
Contact resistance ≤ 200 mΩ (initial)
≤ 20 mΩ (deviation to initial)
Insulation resistance ≥ 0.5 MΩ @ 0.5 kVDC
Dielectric strength Contact to contact: ≥ 1 kV
Contacts to screen: ≥ 1.5 kV
Rated current per contact ≤ 1.0 A
Rated voltage ≤ 57 VDC
Transmission performance CAT5e acc. to TIA/EIA 568A component specifications
CAT5e acc. to ISO/IEC 11801 component specifications
Frequency range 1 - 100 MHz
Power over Ethernet PoE type 4 class 8 acc. IEEE 802.3bt
Shielding S/UTP
Mechanical
Lifetime min. 750 mating cycles
Bending radius fixed laying: ≥ 28 mm
flexible laying: ≥ 56 mm
flexible laying with forced guidance: ≥ 105 mm
Bending cycles Drag chain: ≥ 3 000 000 @ 4.5 m chaing length, 3 m/s velocity and 3 m/s² acceleration (cable but not kink protection)
Environmental
Flame resistance V-0 acc. to UL94 (Connectors/Shell)
V-2 acc. to UL94 (RJ45)
Vertical flame propagation for cable acc. to IEC 60332-2-2 (Cable)
Standard compliance 2011/65/EU
ISO/IEC 11801-1 Ed. 1.0:2017
IEC 60603-7-3 Ed.2.0:2010
IEC 60512-99-002 Ed.2.0:2022
IEC 60512-9-3:2011
Flame resistance acc. to UL94, IEC 60332-2-
Oil resistance acc. to IEC 60811-404, DIN EN 50363-10-2
Halogen free acc. to IEC 60754-1, DIN VDE 0472 part 815
PWIS acc. to PV 3.10.7 (PAINT WETTING IMPAIRMENT SUBSTANCES FREEDOM)
Ingress protection class IP65 acc. to IEC 60529:1989+A1:1999+A2:2013 when sealing cap is closed IP65 & IP67 acc. to IEC 60529:1989+A1:1999+A2:2013 in mated condition with etherCON® TOP airtight
Temperature range installation: -20 °C to +60 °C
fixed laying: -30 °C to +80 °C
flexible laying: -30 °C to +70 °C
flexible laying with forced guidance: -20 °C to +60 °C
Accessories

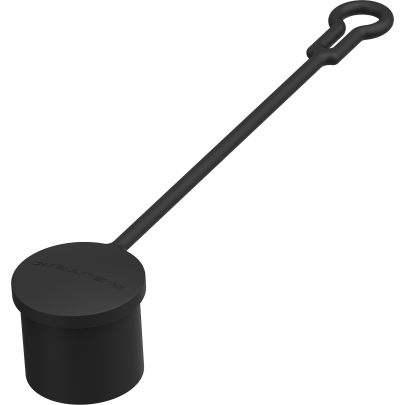

Dichtkappe_SCMX-TOP_persp front liegend_RGB_WEB.png
SCMX-TOP

The rubber sealing cover protects the XLR male TOP connectors NC*MX-TOP & etherCON TOP cable connector NE8MX-TOP from dust and water according to protection class IP65.

Article Variants
Article nameDetailsOrder code
NKE5E-E1E1-M0005                    etherFLEX® TOP CAT5e 0.5 m with etherCON® TOP (m) (m) IP65 & IP67                           NKE5E-E1E1-M0005
NKE5E-E1E1-M0010     etherFLEX® TOP CAT5e 1 m with etherCON® TOP (m) (m) IP65 & IP67        NKE5E-E1E1-M0010
NKE5E-E1E1-M0020etherFLEX® TOP CAT5e 2 m with etherCON® TOP (m) (m) IP65 & IP67NKE5E-E1E1-M0020
NKE5E-E1E1-M0050etherFLEX® TOP CAT5e 5 m with etherCON® TOP (m) (m) IP65 & IP67NKE5E-E1E1-M0050
NKE5E-E1E1-M0100etherFLEX® TOP CAT5e 10 m with etherCON® TOP (m) (m) IP65 & IP67NKE5E-E1E1-M0100
NKE5E-E1E1-M0150etherFLEX® TOP CAT5e 15 m with etherCON® TOP (m) (m) IP65 & IP67NKE5E-E1E1-M0150
NKE5E-E1E1-M0200etherFLEX® TOP CAT5e 20 m with etherCON® TOP (m) (m) IP65 & IP67NKE5E-E1E1-M0200
NKE5E-E1E1-M0300etherFLEX® TOP CAT5e 30 m with etherCON® TOP (m) (m) IP65 & IP67NKE5E-E1E1-M0300

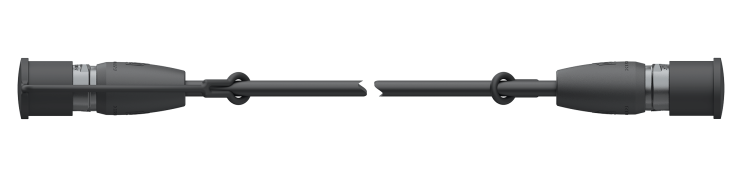

NE8MX-B-TOP_mit_schutzkappe_montage side
