DIE-BNC-JD

Download Data Sheet

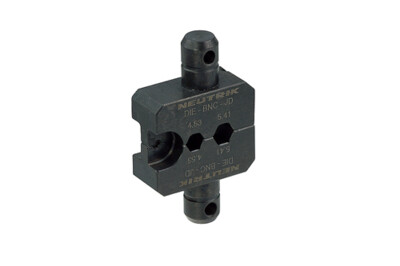

Crimp tool die for HX-BNC

Pin crimping: 1.6 mm
Shield and jacket: HEX crimp 5.41 mm (A), 4.53 mm (B)

Downloads
die-bnc-jd-1
pdf - 66.16 KB
die-bnc-jd-2
dxf - 14.22 KB

Technical Information

Product
Title DIE-BNC-JD
Mechanical
Crimp size 4.53, 5.41 Hex crimp (shield) acc. IEC 60803 (die designation C, D)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Wiresize
Accessories
video
HX-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-BNC-*
