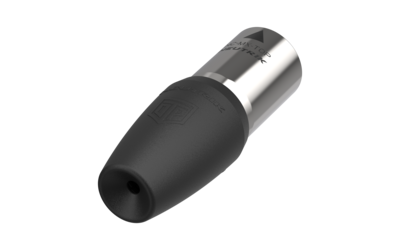

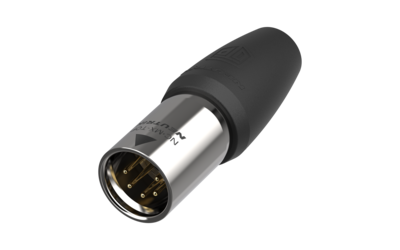

NC5MX1-TOP-14
5 pole male cable connector for 8 mm - 10 mm cable O.D., TRUE OUTDOOR PROTECTION (TOP), gold contacts
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65).
Gold contacts are standard.
Features & Benefits
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Outdoor protection according to IP65
- Uses high impact UV resistant materials
- TOP-Approved in consideration of UL50E
Downloads
Technical Information
| Product | |
|---|---|
| Title | NC5MX1-TOP-14 |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 7.5 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 8.0 - 10.0mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.0 mm² |
| Wiresize | max. 18 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Bushing | UV-resistant rubber |
| Contact plating | Gold (Au) over Nickel (Ni) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 66) |
| Locking element | Stainless steel |
| Shell | Stainless steel |
| Strain relief | Polyacetal |
| Environmental | |
|---|---|
| Approvals | UL |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP65, UL50E enclosure type 4 (mated) |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
