VORSCHAUBILD - FIBERFOX EBC 25  2CH Front open
neutrik-fr / Produits / FIBERFOX / FIBERFOX EBC25 (jam nut) / FIBERFOX EBC25 Cable / FIBERFOX X-TREME EBC25 2CH Cable

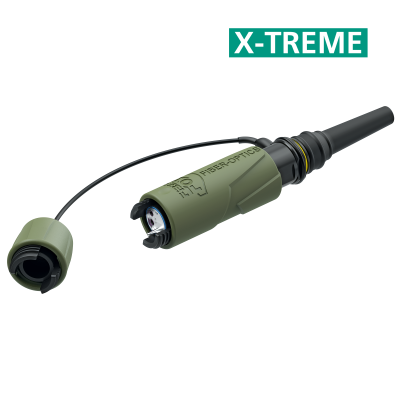

FIBERFOX X-TREME EBC25 2CH Cable

Download Data Sheet

The FIBERFOX X-TREME EBC25 2CH cable connector offers a cut-proof and rodent resistant double jacket glasses yarn cable construction. Excellent cable retention is achieved using aramid yarn.

The entire cable design is encased by a black PUR outer jacket. This makes the cable assembly ideal for outdoor applications. It withstands greater impacts caused by animals and the outdoor environment. FIBERFOX X-TREME is suited for a vast array of applications, including lighting, network, PA, video, broadcast, defense & government, railway, and petrochemical. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical.

The FIBERFOX EBC25 series has an improved temperature resistance of -46°C to 71°C. The connector’s dimensions fully comply with the specifications of the MIL-DTL-83526 standard and is compatible with other connectors which use this standard.

FIBERFOX X-TREME is now available in both multimode and singlemode.

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids, and other contaminations. The FIBERFOX hermaphroditic coupling eliminates the need for adaptors and female and male mating halves. The cable connector comes pre-assembled and is not available as a single component. The finished cable is available in standardized lengths and is packed either on a drum or airspool, and in custom lengths on request.

Features & Benefits
  • Available in multimode and singlemode
  • X-TREME cable protection for demanding outdoor applications
  • Rodent-resistant & cut-proof
  • Extreme robust, heavy-duty, connectors IP68 (mated & unmated)
  • Cables are directly extendable, no couplers required
  • Wear-free connectors, > 10’000 mating cycles without any maintenance
  • Jam-nut design (chassis)
  • Higher temperature resistance (compared to EBC15): -46°C to 71°C (-51°F to 160°F)
  • Dimensions fully comply with the specifications of the MIL-DTL-83526 and are compatible with other connectors using this standard
  • No special cleaning or measurement tools required
Downloads
3D Model NKO2M3-FG
STEP - 5.3 MB
Drawing NKOX2M3-FG
pdf - 96.37 KB
Drawing NKOX2M3-FG
vnd.dwg - 265.33 KB
NKOX2S_FX
pdf - 272.19 KB
NDS31 - FIBERFOX X-TREME 2CH
pdf - 343.52 KB
Assembly Instruction FIBERFOX Chassis Connector EBC25
pdf - 2.04 MB
NEUTRIK - FIBERFOX EXPANDED BEAM CONNECTOR - NF32 V7 202410
pdf - 12.82 MB

Technical Information

Product
Title FIBERFOX X-TREME EBC25 2CH
Gender Hermaphroditic
Mechanical
Tensile Strength 1'800N
Compressive load 50'000N
Lifetime (typ.) 10‘000 mating cycles
Bump resistance 4000 bumps @ 40g acceleration
Vibrational sinusoidal 10-500Hz, 0.75 amplitude @ 10g acceleration
Material
Boot Rubber (EPDM)
Insert Steel
Shell Aluminium
Shell plating Hard anodize
Strain relief Brass
Environmental
Flammability UL 94 V-0
Protection class IP68 mated (15m for 24h acc. MIL-DTL-83526D Section 3.11.28)
and unmated (1m for 24h)
Compatibility MIL-DTL-83526
Temperature range -46°C to +71°C (-51°F to 160°F)
Optical
Insertion Loss Multimode Typ. 1.5dB per connection / Max. 2.5dB per connection
Return Loss Multimode N/A
Insertion Loss Singlemode Typ. 1.0 dB max. 2.0 dB per connection (according with IEC 61300-3-4) Max. 2.5dB per connection (acc. with IEC 61300-3-34)
Return Loss Singlemode Typ. >32dB (according with IEC 61300-3-6)
Optical connector EBC25
Optical wiring ISO / IEC 11801
Mobile cable
Colour Black, matte
Core diameter Multimode 50µm
Cladding diameter 125 µm
Cable jacket PUR
minimal bending radius 92 mm
Number of fibers 2
Cable rentation Aramid yarn
Weight 82 kg/km
Overal diameter 9.2 mm
Outer shield Coated glass yarn
Accessories
data
FIBERFOX_NO2M4JW-FG_persp front_RGB_WEB !.png
FIBERFOX EBC25 2CH chassis

FIBERFOX EBC25 2CH chassis in jam-nut design

FIBERFOX 27610011 o adapters.png
FIBERFOX Adaptor BOX
NKO4M3-FG-0- FIBERFOX EBC25 4CH Cable Connector Assembly
FIBERFOX X-TREME EBC25 2CH Ordering Options
Multimode Order CodeMultimode
product code
DescriptionSinglemode
order code
Singlemode
product code
Description
1036263NKOX2M3-FG-0-050FF X-TREME EBC25 MM 2CH 50m OM3 airspool1038649NKOX2S-FG-0-050FF X-TREME EBC25 SM 2CH 50m  airspool
1036287NKOX2M3-FG-3-050FF X-TREME EBC25 MM 2CH 50m OM3 CableReel GT3801038650NKOX2S-FG-3-050FF X-TREME EBC25 SM 2CH 50m CableReel GT380
1036267NKOX2M3-FG-0-100FF X-TREME EBC25 MM 2CH 100m OM3 airspool1038651NKOX2S-FG-0-100FF X-TREME EBC25 SM 2CH 100m  airspool
1036291NKOX2M3-FG-3-100FF X-TREME EBC25 MM 2CH 100m OM3 CableReel GT3801038652NKOX2S-FG-3-100FF X-TREME EBC25 SM 2CH 100m  CableReel GT380
1036273NKOX2M3-FG-0-150FF X-TREME EBC25 MM 2CH 150m OM3 airspool1038653NKOX2S-FG-0-150FF X-TREME EBC25 SM 2CH 150m  airspool
1036293NKOX2M3-FG-5-150FF X-TREME EBC25 MM 2CH 150m OM3 CableReel GT4501038654NKOX2S-FG-5-150FF X-TREME EBC25 SM 2CH 150m  CableReel GT450
1036275NKOX2M3-FG-0-200FF X-TREME EBC25 MM 2CH 200m OM3 airspool1038655NKOX2S-FG-0-200FF X-TREME EBC25 SM 2CH 200m  airspool
1036297NKOX2M3-FG-4-200FF X-TREME EBC25 MM 2CH 200m OM3 CableReel HT5821038656NKOX2S-FG-4-200FF X-TREME EBC25 SM 2CH 200m  CableReel HT582
1036277NKOX2M3-FG-0-250FF X-TREME EBC25 MM 2CH 250m OM3 airspool1038657NKOX2S-FG-0-250FF X-TREME EBC25 SM 2CH 250m  airspool
1036299NKOX2M3-FG-4-250FF X-TREME EBC25 MM 2CH 250m OM3 CableReel HT5821038658NKOX2S-FG-4-250FF X-TREME EBC25 SM 2CH 250m  CableReel HT582
1036279NKOX2M3-FG-0-300FF X-TREME EBC25 MM 2CH 300m OM3 airspool1038659NKOX2S-FG-0-300FF X-TREME EBC25 SM 2CH 300m  airspool
1036301NKOX2M3-FG-4-300FF X-TREME EBC25 MM 2CH 300m OM3 CableReel HT5821038660NKOX2S-FG-4-300FF X-TREME EBC25 SM 2CH 300m  CableReel HT582
1036283NKOX2M3-FG-0-500FF X-TREME EBC25 MM 2CH 500m OM3 airspool1038661NKOX2S-FG-0-500FF X-TREME EBC25 SM 2CH 500m  airspool
1036285NKOX2M3-FG-0-1000FF X-TREME EBC25 MM 2CH 1000m OM3 airspool1038662NKOX2S-FG-0-1000FF X-TREME EBC25 SM 2CH 1000m  airspool
* Customized Cable Solutions with different lengths available upon request.
Markets & Applications
  • Defense & Government
  • Railway
  • Oil & Gas Station
  • Video
  • PA Market
  • Lighting & Network
