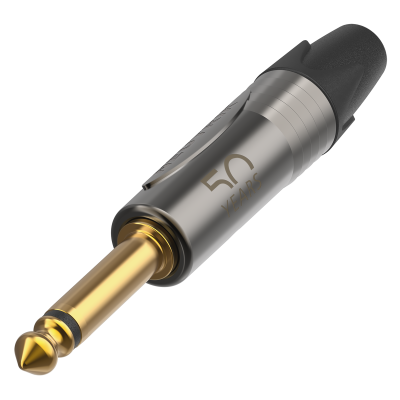

NP2XX-50 YEARS front view 2
neutrik-fr / Produits / NP2X-50

NP2X-50

Download Data Sheet

2 pole 1/4" professional phone plug, 50th Anniversary Special Edition
To mark this milestone, we proudly present our 50th Anniversary Special Edition

Crafted with a unique dark grey conductive metal plating and the 50 years anniversary logo laser engraved, these connectors combine exceptional durability and elegance, while gold-plated contacts ensure superior performance and reliability.


Features & Benefits
  • conductive metal plating
  • gold plated contacts
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact
Downloads
Drawing NP2X-50
pdf - 174.56 KB
Drawing NP2X-50
dxf - 694.77 KB
3D Model NP2X-50
stp - 1.66 MB
3D Model NP2X-50
pdf - 874.36 KB
Assembly Instruction - Professional Phone Plugs PX Series
pdf - 755.23 KB

Technical Information

Product
Title NP2X-50
Product family Plug
Connection type cable connector
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1,0 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact depends on mating connector A
Rated voltage 50 Vac
Mechanical
Cable O.D. 4.0 - 7.0 mm
Lifetime min. 1000 mating cycles
Wiresize 1.0 mm2
Wiresize 18 AWG
Wiring Solder contacts
Material
Boot Polyacetal (POM) + PU
Contact Brass (CuZn39Pb3)
Contact plating 0.2 µm Au
Shell Zinc diecast (ZnAl4Cu1)
Shell plating 50 years Special Edition plating CuNi
Strain relief Polyacetal (POM)
Environmental
Standard compliance IEC 60603-11 / EIA RS-453
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
