NC6FDM3-H-1
neutrik-fr / Produits / Connecteurs XLR / Chassis XLR / D Series / NC6FDM3-H-1

NC6FDM3-H-1

Download Data Sheet

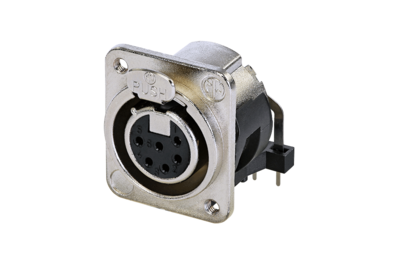

6 pole female receptacle, horizontal PCB mount, Nickel housing,  silver contacts, M3 mounting holes

Universal D-size metal body XLR panel mount series. UL recognized component.

Features & Benefits
  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • PCB mount termination



Downloads
3D Model NC6FDM3-H-1
stp - 3.07 MB
Drawing NC6FDM3-H-1
pdf - 257.5 KB
Drawing NC6FDM3-H-1
dxf - 1.5 MB
UL Certificate of Compliance 2024
pdf - 308.18 KB

Technical Information

Product
Title NC6FDM3-H-1
Connection Type XLR
gender female
Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1.5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 7.5 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring Horizontal PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape D
Mounting Mounting holes with M3 threads
Material
Contact plating 2 μm Ag over 2 μm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA66)
Locking element Steel Ck67
Locking element plating Nickel
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
