NC5FAV-DA
neutrik-fr / Produits / NC5FAV-DA

NC5FAV-DA

Download Data Sheet

***DISCONTINUED***

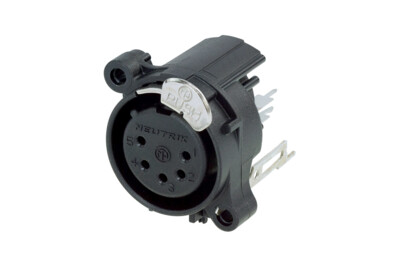

5 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, vertical PCB mount, asymmetric push

The `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). With the asymmetric push an additional space saving of appr. 20 % can be achieved. New designed tulip type contacts with hard gold plating and polished contact areas. UL recognized component.

Features & Benefits
  • Smallest XLR receptacles, highest packing density
  • Plastic housing, steel latch lock
  • Tulip type female contact
  • Polished contact areas and hard gold plating
  • Housing flammability UL 94 V-0
  • For space sensitive applications - 20 % space saving
Downloads
st-nc5fav-da
dxf - 1.81 MB
st-nc5fav-da-1
pdf - 207.58 KB
À gauche
UL Certificate (ECBT2.E135070)

Technical Information

Product
Title NC5FAV-DA
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 6 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 3 A
Rated voltage < 50 V
Grounding Options separate ground contact to mating connector shell and front panel
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring vertical PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape A
Mounting A-Screw
Material
Contacts Bronze (CuSn6)
Insert Polyamide (PA66)
Locking element Steel Ck67
Shell Polyamide (PA 6.6 30% GR)
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30°C to + 80°C
Accessories
audio
A-SCREW-1-8

Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead

CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
NDF

dummyPLUG for Neutrik female XLR receptacles

audio
SCF

Dust protection cover for female chassis connectors

audio

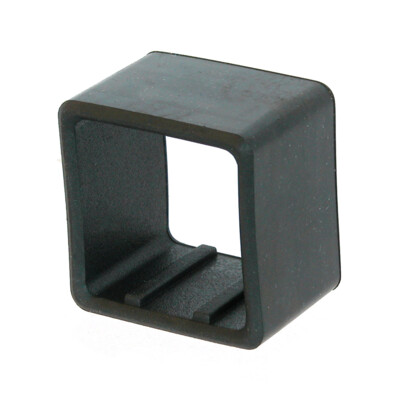

SFAV

Rubber frame to mount between the front plate and the rear vertical print, for airtight vertical XLR A and B Series chassis connectors
