NC3MX-TOP
*** DISCONTINUED ***
Direct replacement / successor: NC3MX1-TOP

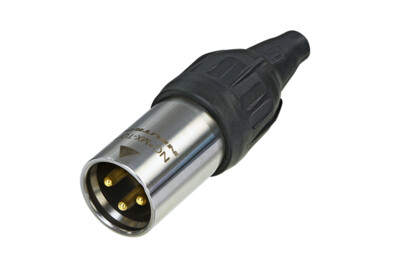

3 pole male cable connector, TRUE OUTDOOR PROTECTION, gold contacts
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
Features & Benefits
- Heavy duty sealed XLR connector range for harsh and demanding environment
- IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
- Uses high impact UV resistant materials
Downloads
Technical Information
| Product | |
|---|---|
| Title | NC3MX-TOP |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 5.0 - 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 5000 mating cycles |
| Wiresize | max. 1.5 mm2 |
| Wiresize | max. 16 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Bushing | UV-resistant rubber |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA66) |
| Locking element | Stainless steel |
| Shell | Stainless steel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Approvals | UL |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP65 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
Accessoires
ITX-TOP
SCMX-TOP
The rubber sealing cover protects the XLR male TOP connectors NC*MX-TOP & etherCON TOP cable connector NE8MX-TOP from dust and water according to protection class IP65.
SCFX-TOP
The rubber sealing cover protects XLR TOP cable connectors NC*FX-TOP from dust and water according to protection class IP65.
