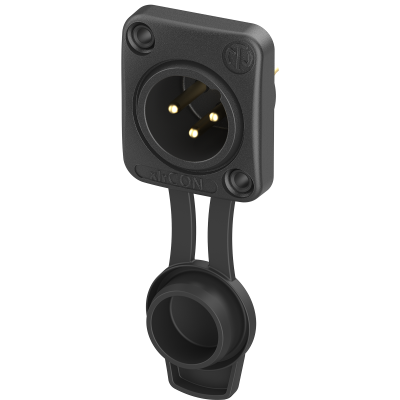

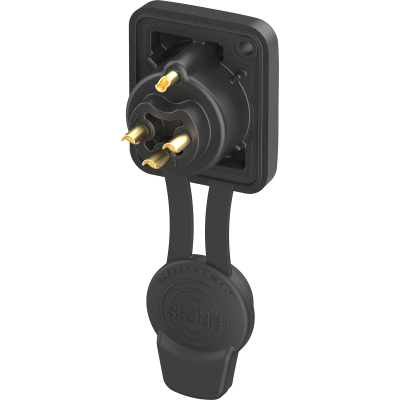

xlrCON_NC3MDXX-TOP_persp front_RGB_WEB xlrCON_NC3MDXX-TOP_persp back_RGB_WEB
xlrCON_NC3MDXX-TOP_persp front_RGB_WEB
xlrCON_NC3MDXX-TOP_persp back_RGB_WEB
1/2
neutrik-fr / Produits / Connecteurs XLR / Chassis XLR / TOP Series / NC3MDXX-TOP

NC3MDXX-TOP

Download Data Sheet

The "xlrCON TOP airtight" chassis connector is the perfect solution for demanding outdoor applications and the harshest conditions. This innovative product is part of the xlrCON product group and belongs to our premium signal line. With an impressive array of features and a particular focus on protection and performance, the "xlrCON TOP airtight" is the choice for professionals who require absolute reliability.

With the xlrCON TOP airtight, you can count on a secure connection, even in the most extreme outdoor conditions. Rely on its protective features and high performance to ensure signal connections that meet the most stringent requirements. Trust in TRUE OUTDOOR PROTECTION with this outstanding chassis connector from NEUTRIK – your link to the future.

Features & Benefits
  • IP65 & IP66 rating to protect from water and dust ingress (even in unmated and open sealing cap condition)
  • Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
  • Corrosion resistance (Saltspraytest 1440h)
  • Seamless design language of etherCON TOP & xlrCON TOP
  • UV protection (F1 housing, F2(UV) sealing)
  • Easy maintenance due to front-mount design
  • Flame retardant (V0, halogen free)
  • ESD protection up to 2 kV
Downloads
3D Drawing NC3MDXX-TOP
stp - 3.62 MB
3D Drawing NC3MDXX-TOP
pdf - 1.52 MB
Drawing NC3MDXX-TOP
pdf - 283.37 KB
NC3MDXX-TOP
dxf - 2.51 MB
BDA 699 V2 - xlrCON TOP airtight
pdf - 1.91 MB
APPLICATION NOTES TRUE OUTDOOR PROTECTION
pdf - 4.03 MB
NEUTRIK TOP SIGNAL CONNECTORS
pdf - 2.59 MB
IECEE CB Test Certificate DE1-68043
pdf - 93.64 KB
ETL Certificate 105609105ATL-001A
pdf - 106.35 KB
NAG-0012B (fire enclosure)
pdf - 38.36 KB

Technical Information

Product
Title NC3MDXX-TOP
Product family xlrCON
Connection type chassis connector
Gender male
Electrical
Capacity between contacts ≤ 4 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current acc. to IEC 61984 & EN 61984 at ta 25°C 16 A in combination with NC3FX1-TOP
Rated current acc. to IEC 61984 & EN 61984 at ta 50°C 15 A in combination with NC3FX1-TOP
Rated current acc. to UL 1977 13 A in combination with NC3FX1-TOP
Rated current acc. to CSA C22.2 No. 182.3 10 A in combination with NC3FX1-TOP
Rated voltage acc. to IEC 61984 & EN 61984 50 Vac SELV
Rated voltage acc. to UL1977 50 Vac
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime min. 1000 mating cycles
Locking device Latch lock
Wiring Solder contacts
Chassis shape D
Mounting direction Front mounting
Material
Contact plating Gold plating
Contacts Brass
Flange PA66 (hard component) + TPE-E (soft component)
Housing PA66
Environmental
outdoor enclosure suitable to be used as part of the outdoor enclosure of electrical and electronic equipment according to Annex Y of IEC 62368-1, EN IEC 62368-1, UL 62368-1, C22.2 No. 62368-1
fire enclosure suitable to be used as part of the fire enclosure of electrical and electronic equipment according to IEC 62368-1, EN IEC 62368-1, UL 62368-1, C22.2 No. 62368-1
Standard compliance IEC 61984
EN 61984
UL 1977
CSA C22.2 No. 182.3
Ingress protection acc. to IEC 60529 IP65 & IP66
Solderability Complies with IEC 60068-2-20
Pollution Degree acc. to IEC 60664-1:2
